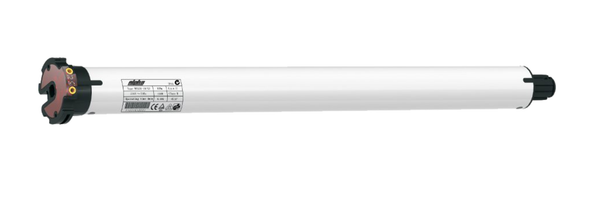

WSS50 30/17 Universal

Regular price $240.00

Shipping & taxes calculated at checkout Shipping

A basic featureless 4 core motor for when you want a reliable workhorse without any bells & whistles.

Unlike the WSEC Series motors, these motors cannot be parallel wired.

Best used in Non-Cassette Awnings, Roller Blinds, Roller Shutters, projectors.

All Alpha motors come with a 60mm octagonal drive and crown wheel as standard. See our drive wheel page for others.

45mm diameter
240V / 50Hz
Standard Type
Mechanical Switch

Support

4 core motor active wire assignments

Setting mechanical limits

troubleshooting

Technical Information
RATED TORQUE (Nm) 30
OUTPUT SPEED (rpm) 17
NOMINAL CONSUMPTION (W) 226
NOMINAL VOLTAGE (V) 240
NOMINAL CURRENT (A) 0.95
RUNNING TIME (Min) 4
PROTECTION INDEX (IP) 44
TOTAL LENGTH (mm) 455
MAXIMUM TURNS 27
NET WEIGHT (kg) 2.40
