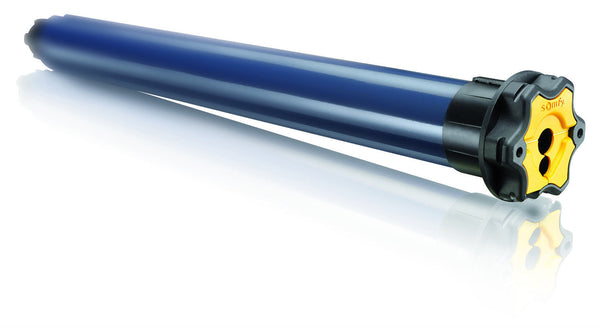

ANTARES 60 WT 70Nm 17rpm Fabric Tensioning Systems 1185011

Regular price $950.00

Shipping & taxes calculated at checkout Shipping
  • 230V / 50Hz tubular motor.
  • The FTS range is specially adapted to suit Fabric Tensioning Systems. Utilising two
    motors and specific electronics to manage the run of the system, the FTS motor
    is unique in its operation. Horizontal and inclined shading is where the Fabric
    Tensioning System is particularly adept.
  • Rapid set limits.
  • 6 minute running time (electronically limited).
  • Suitable for tubes: Ø50 to Ø70.
  • Specific FTS Hi-Pro Box and FTS motors required for operation*.
  • Requires the use of a crown and wheel for tube adaptation.
  • Horizontal mount only.
  • Intermittent Usage.

*FTS controller must be used with 2 FTS motors for correct operation.
Torques cannot be mixed on the same FTS controller.

Support

FTS 60 Datasheet

FTS Safety Sheet

FTS Selection Chart

Technical Information

ELECTRICAL

Consumption during operation 390   W
Minimum voltage 207   V
Maximum Voltage 244   V
Rated current 1.9   A
Nominal Voltage / Frequency 230V 50Hz

MECHANICAL

Capacity of the limit switch unit 35   turns
Type of limit switch unit Quick limit switch
Type of head Star Head
Nominal Speed 17   rpm
Nominal Torque 70   Nm

STANDARD

Approval RCM
Protection Index IP44
Insulation class Class I

CABLE

Plug in cable Black LT Plug (non removable)
Cable type Rubber
Wire section 0.75   mm²
Color Black
Wire Length 2.5   m
Number of wires of the cable 5

DIMENSION

Length (L1) 700   mm
Weight 5.1   Kg
Overall length (L3) 694   mm
Riveting position distance (L2) 677   mm
