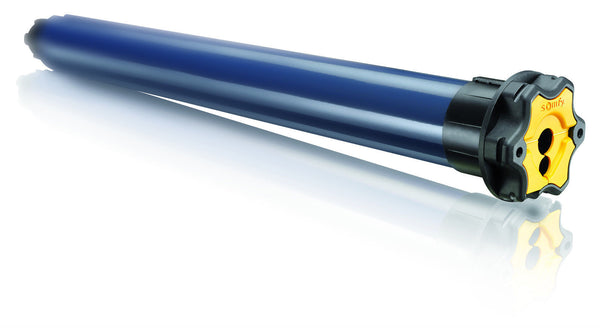

- 230V / 50Hz tubular motor.
- The FTS range is specially adapted to suit Fabric Tensioning Systems. Utilising two
motors and specific electronics to manage the run of the system, the FTS motor
is unique in its operation. Horizontal and inclined shading is where the Fabric
Tensioning System is particularly adept.
- Rapid set limits.
- 6 minute running time (electronically limited).
- Suitable for tubes: Ø50 to Ø70.
- Specific FTS Hi-Pro Box and FTS motors required for operation*.
- Requires the use of a crown and wheel for tube adaptation.
- Horizontal mount only.
- Intermittent Usage.
*FTS controller must be used with 2 FTS motors for correct operation.
Torques cannot be mixed on the same FTS controller.
Support
FTS 60 Datasheet
FTS Safety Sheet
FTS Selection Chart
Technical Information
ELECTRICAL
|
| Consumption during operation |
350 W |
| Minimum voltage |
207 V |
| Maximum Voltage |
244 V |
| Rated current |
1.5 A |
| Nominal Voltage / Frequency |
230V 50Hz |
MECHANICAL
|
| Capacity of the limit switch unit |
35 turns |
| Type of limit switch unit |
Quick limit switch |
| Type of head |
Star Head |
| Nominal Speed |
17 rpm |
| Nominal Torque |
55 Nm |
STANDARD
|
| Approval |
RCM |
| Protection Index |
IP44 |
| Insulation class |
Class I |
CABLE
|
| Plug in cable |
Black LT Plug (non removable) |
| Cable type |
Rubber |
| Wire section |
0.72 mm² |
| Color |
Black |
| Wire Length |
2.5 m |
| Number of wires of the cable |
5 |
DIMENSION
|
| Length (L1) |
700 mm |
| Basic crown for tube diameter |
63 x 1.5 mm |
| Weight |
5 Kg |
| Overall length (L3) |
694 mm |
| Riveting position distance (L2) |
677 mm |
