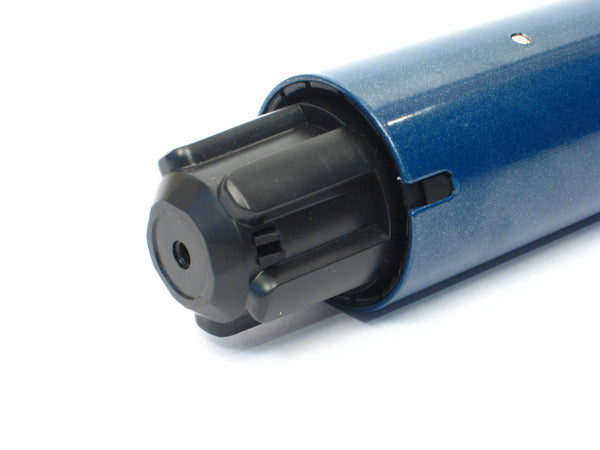

Motor with integrated radio control. A classic multi-purpose unit to motorize a host of products (roller shutters, awnings, vertical blinds, etc.) Up, down and stop functions, and can be pre-programmed with "my" favorite
future upgrade available with the use of the somfy wind/sun sensor.
Support
Roller Shutter motor selection chart
Altus 50 RTS Technical drawing
folding arm awning motor chart
Technical Information
TECHNOLOGY |
|
|---|---|
| Radio Frequency | 433.42 MHz |
| Capacity of memory | 12 different transmitters plus 3 wireless sensors |
| Coding | Rolling code 16 million of possibilities |
ELECTRICAL |
|
|---|---|
| Antenna | Integrated |
| Consumption during operation | 120 W |
| Minimum voltage | 207 V |
| Maximum Voltage | 253 V |
| Nominal Voltage / Frequency | 230V AC 50Hz |
| Rated current | 0.5 A |
MECHANICAL |
|
|---|---|
| Nominal Torque | 6 Nm |
| Type of limit switch unit | Electronic |
| Type of head | Star |
| Nominal Speed | 32 rpm |
| Capacity of the limit switch unit | 250 turns |
STANDARD |
|
|---|---|
| Approval | RCM |
| Insulation class | Class I |
| Protection Index | IP44 |
CABLE |
|
|---|---|
| Number of wires of the cable | 3 |
| Wire section | 0,75 mm² |
| Plug in cable | Grey LT plug |
| Cable type | PVC |
| Color | White |
| Wire Length | 5 m |
DIMENSION |
|
|---|---|
| Overall length (L3) | 613 mm |
| Riveting position distance (L2) | 590 mm |
| Weight | 2,214 Kg |
| Basic crown for tube diameter | 50 x 1,5 mm |
| Length (L1) | 605 mm |
