The Sonesse® 40 range is putting window coverings in motion with quiet precision. Ideal for variety of interior window covering applications.

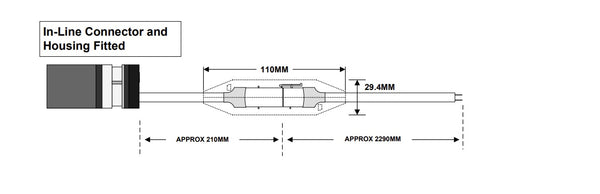

Comes with a 3 meter inline connector to make servicing the motor much easier.
Support
Sonesse 40 rts installation guide
Sonesse 40 rts datasheet
Sonesse 40 rts inline connector wiring
Technical Information
| Weight |
Minimum blind weight is 2kg |
TECHNOLOGY
|
| Radio Frequency |
433.42 MHz |
| Capacity of memory |
12 different codes plus 3 wireless sensors |
| Coding |
Rolling code 16 million of possibilities |
ELECTRICAL
|
| Antenna |
Integrated |
| Consumption during operation |
95 W |
| Minimum voltage |
207 V |
| Maximum Voltage |
253 V |
| Rated current |
0.44 A |
| Nominal Voltage / Frequency |
230V AC 50 Hz |
MECHANICAL
|
| Capacity of the limit switch unit |
250 turns |
| Type of limit switch unit |
Electronic |
| Type of head |
Round |
| Nominal Speed |
30 rpm |
| Nominal Torque |
3 Nm |
STANDARD
|
| Approval |
RCM |
| Protection Index |
IP44 |
| Insulation class |
Class II |
CABLE
|
| Plug in cable |
Inline Connector V2 |
| Cable type |
PVC |
| Wire section |
0.75 mm² |
| Color |
White |
| Wire Length |
3 m |
| Number of wires of the cable |
2 |
DIMENSION
|
| Length (L1) |
504 mm |
| Weight |
1.225 Kg |
| Overall length (L3) |
517 mm |
| Riveting position distance (L2) |
480 mm |
OTHER
|
| Noise level (according to Somfy measures) |
42 dBA |
| Working temperature |
0-60 °C |
