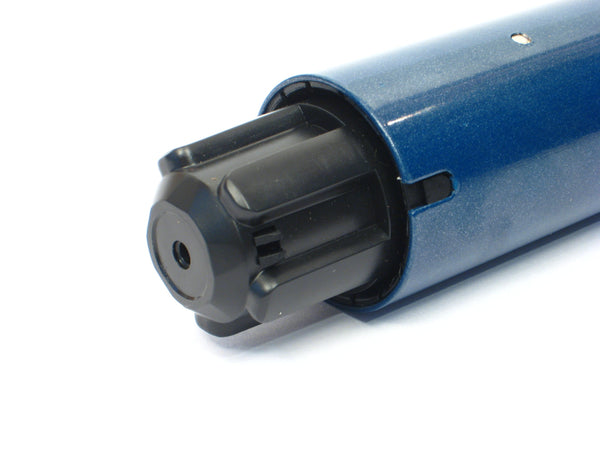

Motor with integrated radio control. A classic multi-purpose unit to motorise a host of products (roller shutters, awnings, vertical blinds, etc.) Up, down and stop functions, and can be pre-programmed with "my" favourite
future upgrade available with the use of the somfy wind/sun sensor.
Support
Roller Shutter motor selection chart
Altus 50 RTS Technical drawing
folding arm awning motor chart
Technical Information
ELECTRICAL |
|
|---|---|
| Antenna | Integrated |
| Consumption during operation | 90 W |
| Minimum voltage | 207 V |
| Maximum Voltage | 253 V |
| Rated current | 0.4 A |
| Nominal Voltage / Frequency | 230V AC 50Hz |
MECHANICAL |
|
|---|---|
| Capacity of the limit switch unit | 250 turns |
| Type of limit switch unit | Electronic |
| Type of head | Star |
| Nominal Speed | 17 rpm |
| Nominal Torque | 6 Nm |
STANDARD |
|
|---|---|
| Approval | RCM |
| Protection Index | IP44 |
| Insulation class | Class I |
CABLE |
|
|---|---|
| Plug in cable | Grey LT Plug |
| Cable type | PVC |
| Wire section | 0.75 mm² |
| Color | White |
| Wire Length | 3 m |
| Number of wires of the cable | 3 |
DIMENSION |
|
|---|---|
| Length (L1) | 555 mm |
| Basic crown for tube diameter | 50 x 1,5 mm |
| Weight | 1.85 Kg |
| Overall length (L3) | 560 mm |
| Riveting position distance (L2) | 540 mm |
