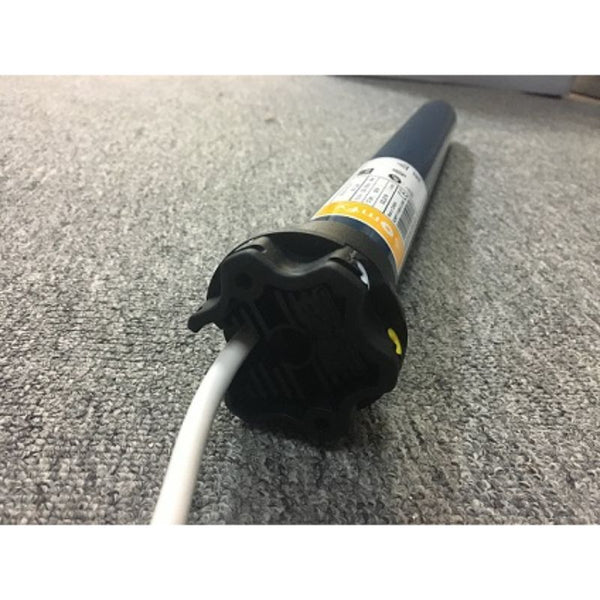

With all the benefits of the standard LTN 50 WT but with a Radio Transmitted Signal (RTS, this motor offers a cost saving option for remote controlled shutters. It can be used in conjunction with the range of Somfy’s quality remotes.
Support
Roller Shutter motor selection chart
External Blind motor selection chart
Technical Information
Mechanical
- Capacity of the limit switch unit
- 34 turns
- Type of limit switch unit
- Quick limit switch
- Nominal Speed
- 17 rpm
- Nominal Torque
- 15-30 Nm
- Repeatabilty
- ± 5 °
Electrical
- Consumption during operation
- 170 W
- Minimum voltage
- 207 V
- Maximum Voltage
- 244 V
- Rated current
- 0.75 A
- Nominal Voltage / Frequency
- 230V - 50 Hz
Standard
- Approval
- RCM
- Protection Index
- IP 44
- Insulation class
- Class I
Cable
- Plug in cable
- Black CSI Plug
- Cable type
- PVC
- Wire section
- 0,75 mm²
- Color
- White
- Wire Length
- 2,5 m
- Number of wires of the cable
- 4
Dimension
- 15nm
- Length (L1)
- 605 mm
- Basic crown for tube diameter
- 50 x 1,5 mm
- Weight
- 2,81 Kg
- Overall length (L3)
- 620 mm
- Riveting position distance (L2)
- 595 mm
Other
- Thermal time
- 4 mn
- Noise level (according to Somfy measures)
- 56 dBA
- Working temperature
- -10 to +40 °C
